FLEXCENTRE 160

Description

FLEXCENTRE 160

Generate PDF

elumatec_FlexCentre_160

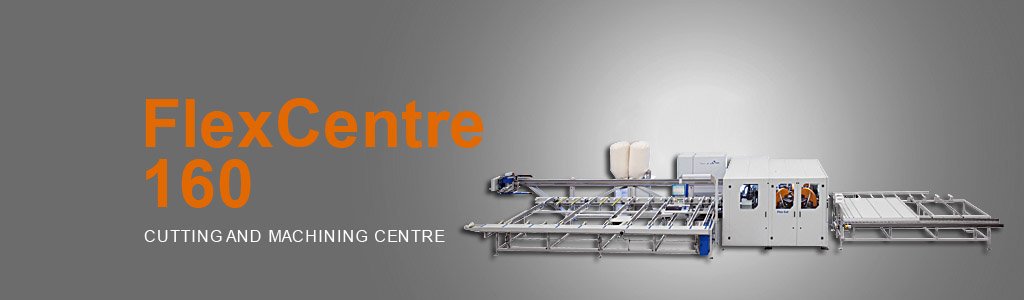

High performance cutting and machining centre for PVC windows and doors

  • Automatic magazine pre-loader
  • Pusher axis with high speed linear motor drive
  • Automatic control and monitoring of the profile gripper position
  • Optimum profile guidance via horizontal and vertical clamping
  • Six axis machining module for partial parallel machining
  • Two independent machining carriages with three servo drives each, for X, Y, and Z direction
  • Triple saw with 45º, 90, 135 cutting angles, including arrowhead and V-notch
  • Off-load conveyor belt
  • PC with Windows operating system
  • PC control system with loading table display

Technical specifications

  • Magazine pre-loader: 9 slots
  • Profile width: 40 – 130 mm max.
  • Profile depth: 45 – 120 mm max.
  • Min. cutting length: 326 mm
  • Max. cutting length: 4,006 mm
